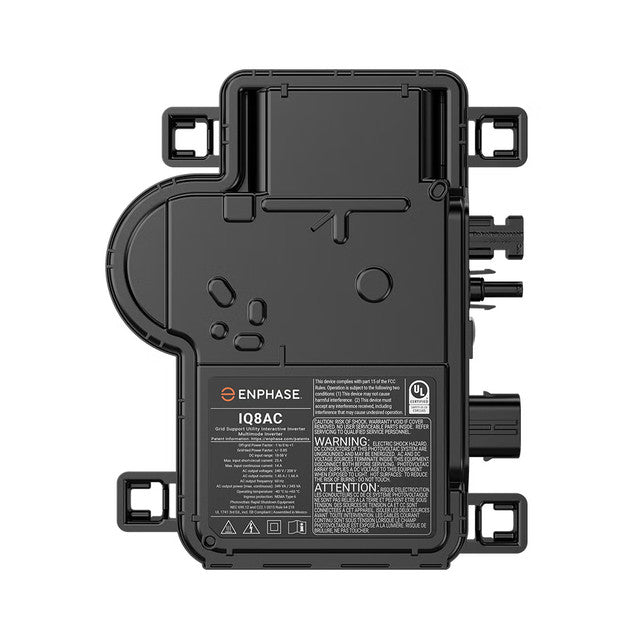

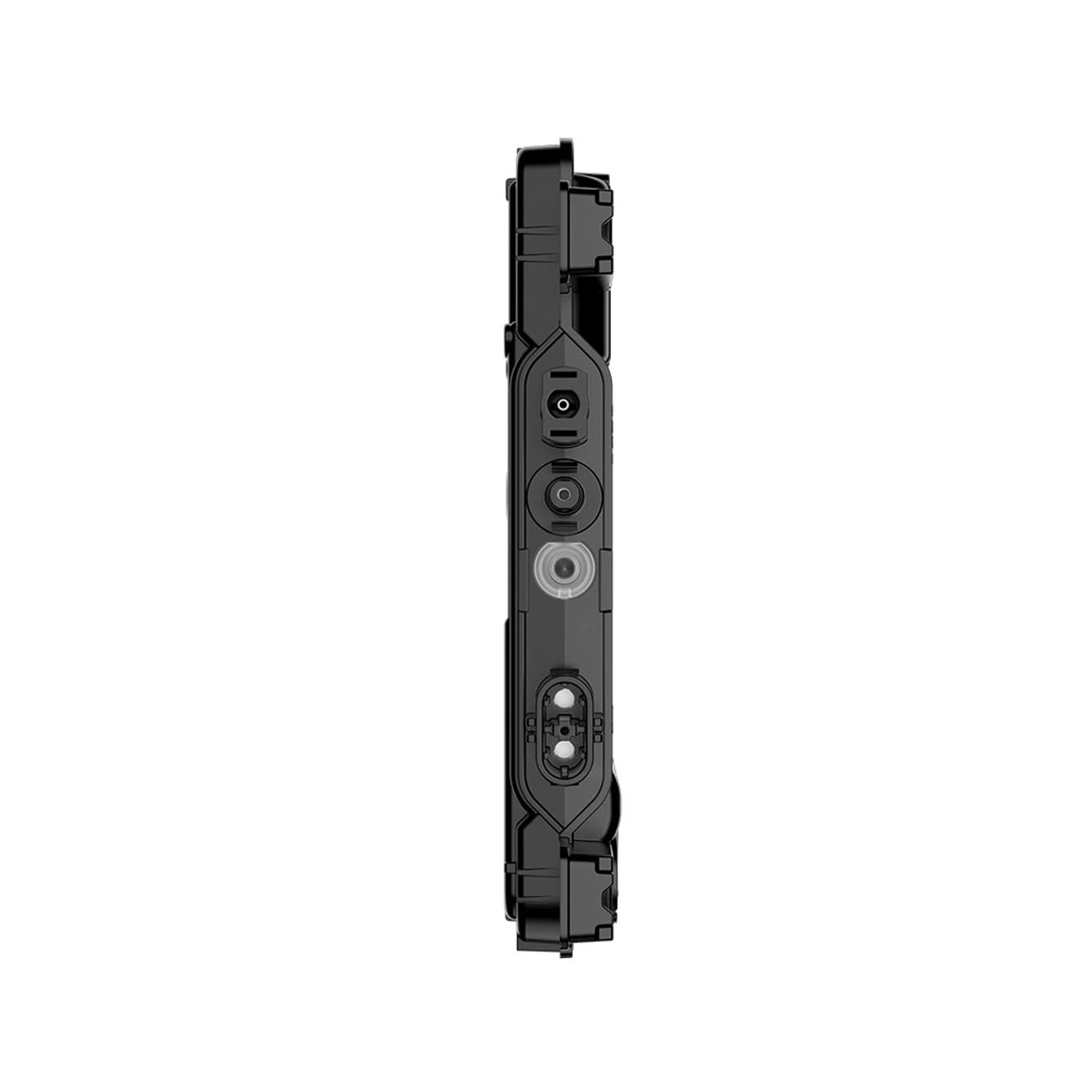

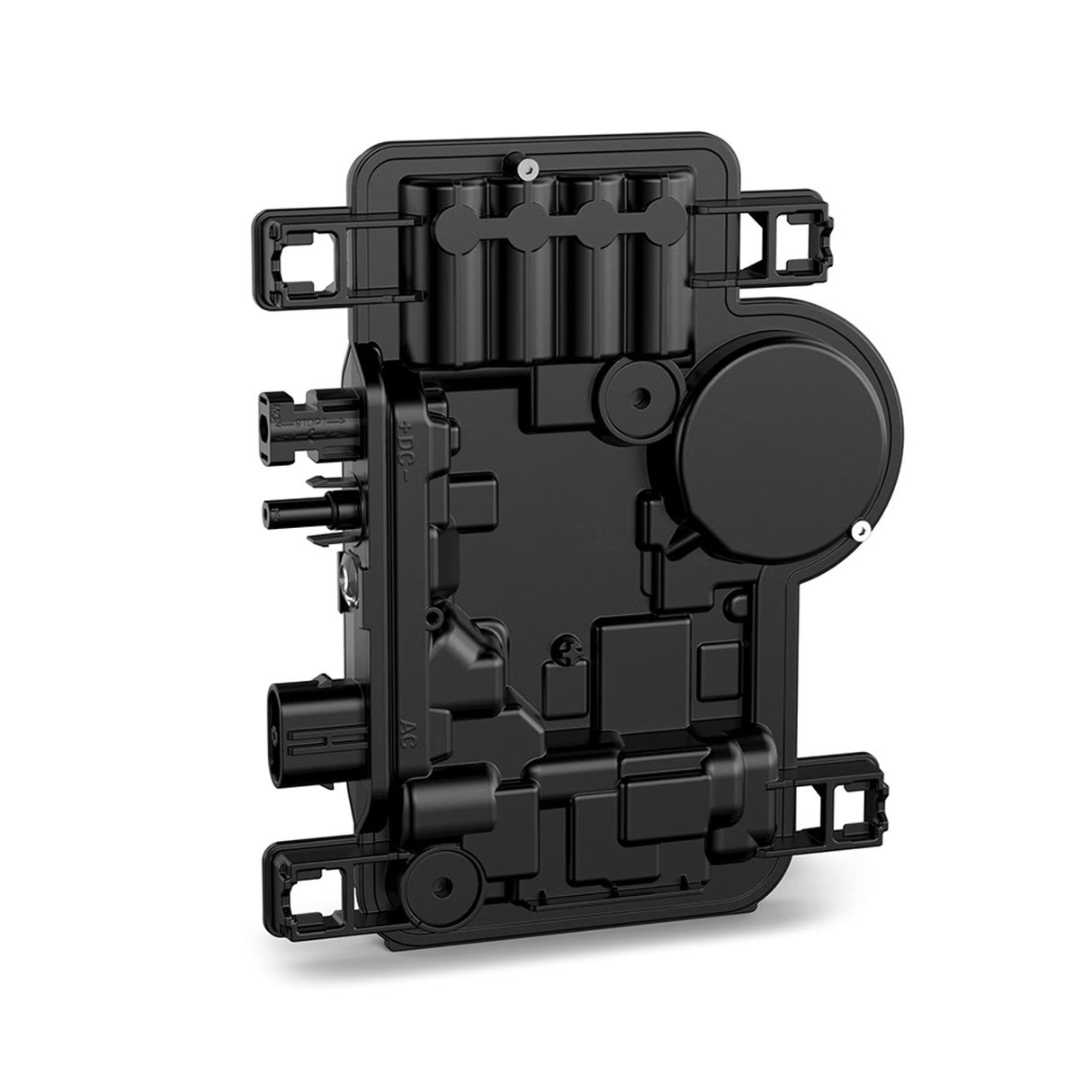

Enphase IQ8AC Microinverter

Enphase IQ8AC Microinverter – The Next Generation of Resilient, Software-Defined Solar

Experience unmatched performance and flexibility with the Enphase IQ8AC Microinverter, part of the industry’s first microgrid-forming, software-defined microinverter series. Engineered with advanced 55 nm ASIC technology, IQ8AC effortlessly switches between grid-tied and off-grid modes, delivering a fast and dynamic response to changing power demands and grid conditions. Enjoy seamless integration into the broader Enphase Energy System, including IQ Battery, IQ Gateway, and the Enphase App for comprehensive system monitoring and management.

Key Features

1. Microgrid-Forming Capability

   • Ensures continuous power by supporting both grid-tied and off-grid operation.

2. High Reliability

   • Over one million hours of cumulative testing, backed by up to a 25-year warranty.

3. Optimized for Modern PV Modules

   • Maximum Input Voltage: 60 V
   • Maximum Output Power: 366 W
   • MPPT Voltage Range: 28–45 V

4. NEMA Type 6 Enclosure

   • Rugged, outdoor-rated design for dependable performance in harsh environments.

5. Simplified Installation

   • Lightweight, plug-and-play design with two-wire cabling and an included mounting bracket.

6. Intelligent Connectivity

   • Power line communication (PLC) between components, plus remote automatic updates for grid compliance in various regions.

7. Rapid Shutdown Compliance

   • UL Listed as PV rapid shutdown equipment when installed per the manufacturer’s instructions.

8. System Compatibility

   • Integrates seamlessly with the IQ Battery, IQ Gateway, and the Enphase App.
   • Cannot be mixed with older Enphase microinverters (IQ7 Series, IQ6 Series, etc.) in the same system.
   • Single-phase only for 208 Vac, supporting grid-tied mode.

What’s in the Box

• IQ8AC Microinverter
• Mounting Bracket

Note: For optimum performance and safety, ensure correct system design and follow all manufacturer guidelines. The Enphase IQ8AC Microinverter brings breakthrough resilience to your solar setup—ready to power your home or business through any grid event.
